3.5 Inch Hard Disk Bracket 2/3 layers Holder Desktop Computer Case Mechanical HDD Expansion Double layer Support Bracket

Name: 3.5 inch L-shaped HDD hard drive bracket
Material: Galvanized sheet
Features: Hard disk storage, storage, beautiful and tidy, with screw holes at the bottom (standard hard disk position), can be installed on the chassis
Hard disk: 2/3 3.5 inch hard disks available
Fan: 3 Layers fit 8010 fan, 2 layers fit 5010 fan
Colour: Black
Thickness: 1mm
Accessories:Screw

SIZE:

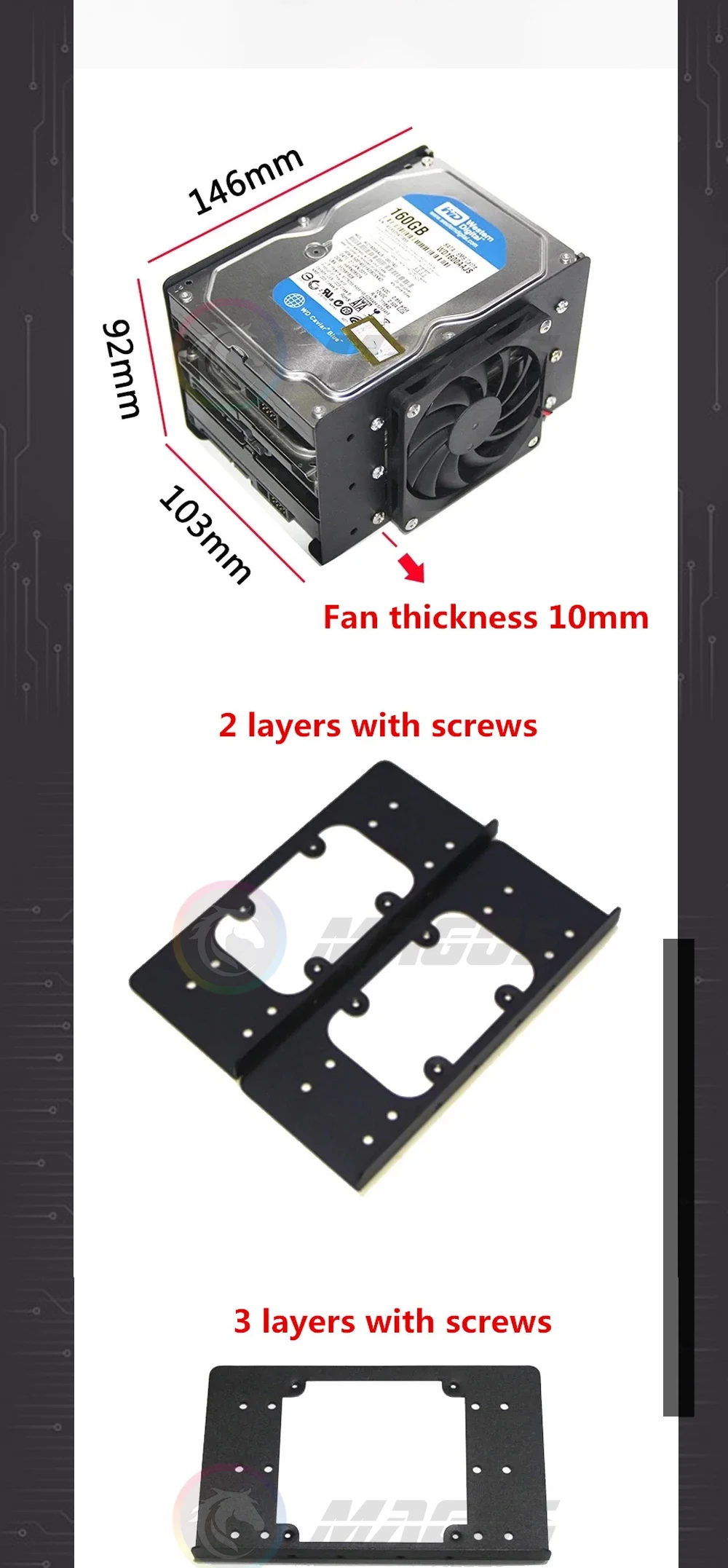

Layer 2: Dimensions after HDD installation: 146(L)×106(W)×62(H)mm
Layer 3: Dimensions after HDD installation: 146(L)x106(W)x92(H)mm
Single side size: 146mmx92mm L-shaped protrusion width is 15mm
The bottom hole distance is 44mm, and the bottom hole can be installed on the 3.5 hard disk position of the chassis.
The distance between the upper and lower screw holes: 3cm
This bracket has no partition, and the hard disk is directly installed with the side plate.
This link does not contain hard disks, only brackets are sold.
