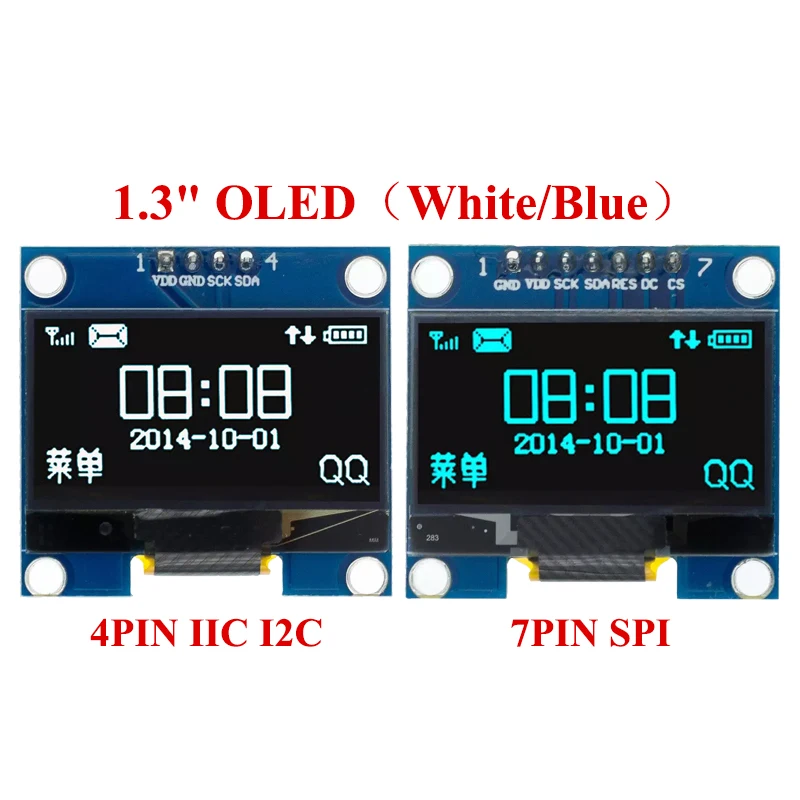

1.3" OLED Module 1.3 inch Display Module White/Blue 128X64SPI/IIC I2C Communicate Color 1.3 Inch OLED LCD LED Display Module

Module Features:

1, resolution: 128X64

2, super wide viewing angle: more than 160 ° (maximum viewing angle display a screen)

3, ultra-low power consumption: normal display 0.08W (far below the TFT display)

4, wide supply range: DC 3V-5V (without any changes, directly compatible with common 3.3V and 5V power supply system)

5, industrial grade: Operating temperature range -30 degree~ 70 degree

6, the ultra-small size: (length) 35.4MM * (W) 33.5MM * (thickness) 4.3MM

7, support for multiple operating modes: 3-wire SPI, 4 wire SPI, IIC

8, with chip select CS signal, you can achieve multiple SPI or IIC device on the same bus work

9, compatible with 3.3V and 5V control chip I / O level (without any set, directly compatible)

10, OLED screen, internal drive chip: SH1106 (Operation and SSD1306 same)
