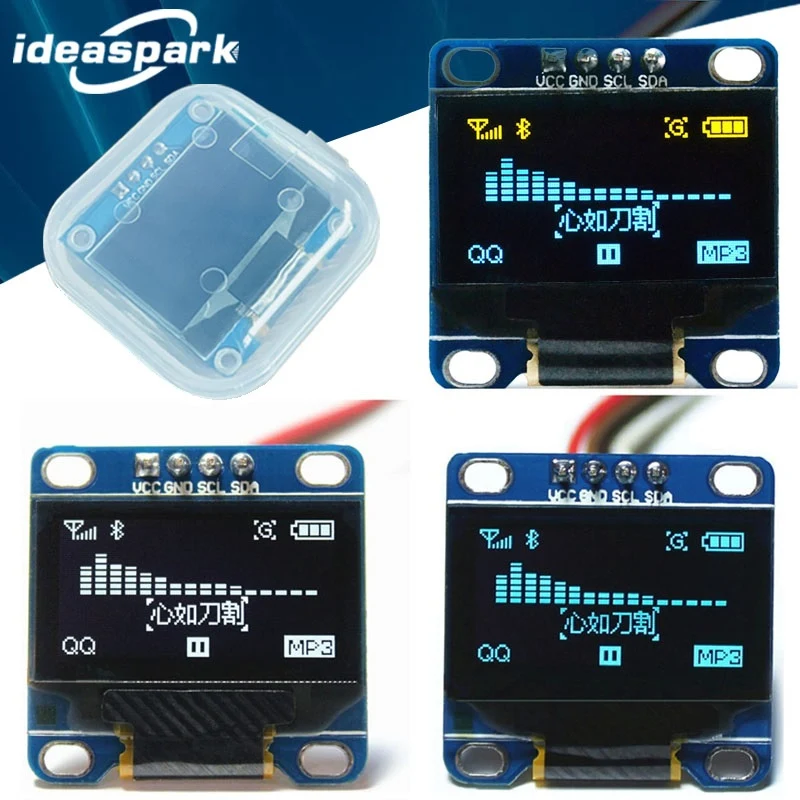

OLED Display SSD1306 0.96inch 128X64

• 0.96 Inch OLED Module for showing graphical & textual information directly on your micro-controller projects. It supports many chips: for Arduino UNO and Mega, Raspberry pi, 51 MCU, STIM 32, etc., the UNO shown in the picture is NOT INCLUDE

• Resolution: 128 x 64, View angle: > 160°, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W

• Embedded Driver IC: SSD1306. Communication: I2C/IIC Interface, only need two I / O ports

• Needn't backlight, the display unit can self-luminous. It has Super High Contrast, bright and crisp dots, even tiny fonts quite readable

• No embedded fonts inside the OLED controller, user can create the fonts through the font generation software. We offer technical support and software library as well as the guide book in the package

 Description:

This OLED display module is small, only 0.96" diagonal, it is made of 128x64 individual yellow and blue OLED pixels, each one is turn on or off by the controller chip.
It works without backlight, that is, in a dark environment OLED display is higher compared to that of LCD display you will like the miniature for its crispness.
The Driver chip of this OLED is SSD1306, which is compatible with IIC communication. So this module can be controlled by I2C.
That is, except the VCC and GND, 2 wires would be needed when using 4-wires I2C mode.
There is also a simple switch-cap charge pump that turns 5v into a low voltage drive for the OLEDs, making this module the easiest ways to get an OLED into your project.

Features:
OLED self-luminous, no backlight
Size: 0.96"
Driver IC: SSD1306
Voltage: 3.3V-5V DC
Viewing angle: > 160°
High resolution: 128 x 64
Working Temperature: -30°C~70°C
Display: 2 rows of yellow, 6 rows of blue,White,Blue
Module Size: 27mmx 27mm x 4mm
Screen material: glass, need good protection
I2C Interface:
GND: Ground
VCC: 3.3V~5V
SCL: I2C Serial Clock (UNO: A5; MEGA: 21)
SDA: I2C Serial Data (UNO: A4; MEGA: 20)

Applications:
MP3, MP4, watch
Head-mounted displays
Meters and other intelligent instruments
Design any pretty patterns for your beloved electronic devices!

Package List:

1 x 0.96'' OLED Display
1 x Plastic Box








Package List:

1 x 0.91'' OLED Display
1 x Plastic Box
